VINYL INSULATED PARALLEL SPLICE CONNECTORS
Material
lnsulation:vinyl
Terminal body:Copper Tubular
Plating:Tin
WIRE
RANGE |
ITEM NO. |

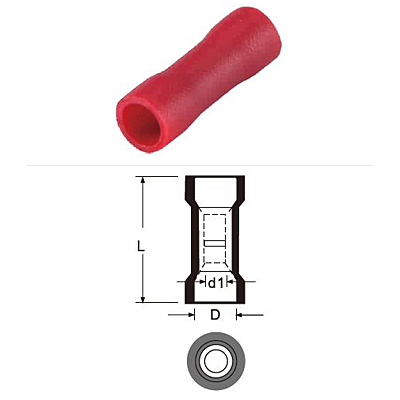

DIMENSION mm(inch) |
MATERIAL |
COLOR |
Q’TY
BOX |
mm2
(A.W.G.) |
L |
D |
d1 |
|
0.5-1.5
(22-16) |
PVT1 |
13.0(.512) |
4.0(.157) |
1.7(.067) |
COPPER TUBULAR |
Red |
1000 |
|
1.5-2.5
(16-14) |
PVT2 |
13.0(.512) |
4.5(.177) |
2.3(.091) |
COPPER TUBULAR |
Blue |
1000 |
|
4-6
(12-10) |
PVT5 |
15.1(.591) |
6.3(.248) |
3.4(.134) |
COPPER TUBULAR |
Yellow |
500 |
