PUSH-WIRE CONNECTOR

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

Data Source : 1

Insulation：PA66
Metal：Copper
Plated：Tin

PHOTOS	ITEM NO.	Cross. Sectopm (mm²/AWG)	Depth (mm/inch)	Width (mm/inch)	Height (mm/inch)	Strip Length (mm/inch)	Rate Voltage (V)	Rate Current (A)	Q’TY BOX

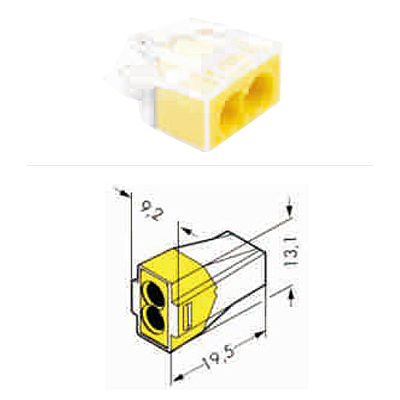

	EJT-102	0.75-2.5 (18-12)	19.5(.768)	9.2(.362)	13.1(.516)	12-13(.47)	400	24

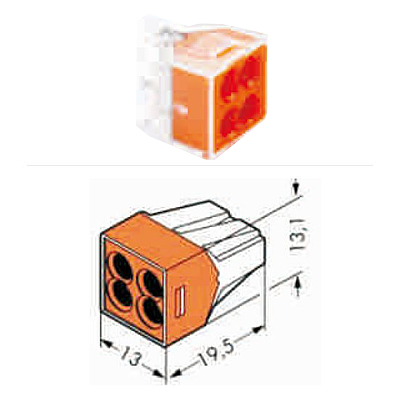

	EJT-104	0.75-2.5 (18-12)	19.5(.768)	13(.512)	13.1(.516)	12-13(.47)	400	24

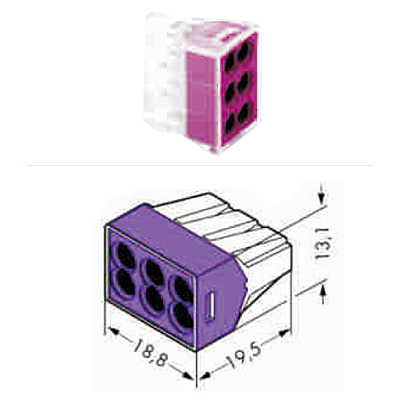

	EJT-106	0.75-2.5 (18-12)	19.5(.768)	18.8(.74)	13.1(.516)	9-11(.39)	400	24

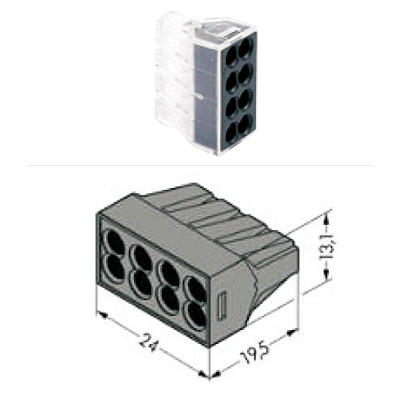

	EJT-108	0.5-2.5 (20-15)	19.5(.768)	24(.945)	13.1(.516)	12-13(.47)	400	24

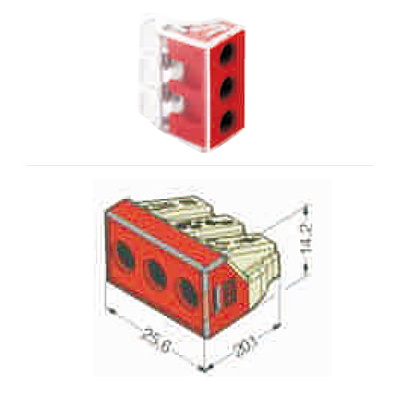

	EJT-173	1.5-4 (14-10)	20.1(.791)	25.6(1.008)	14.2(.559)	12-13(.47)	400	41
