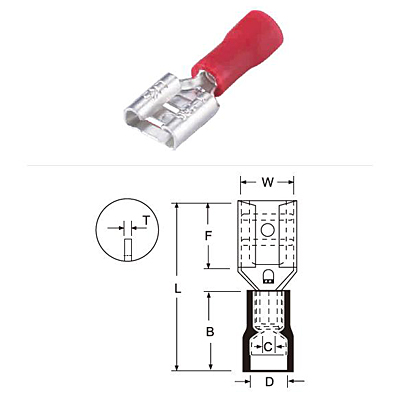

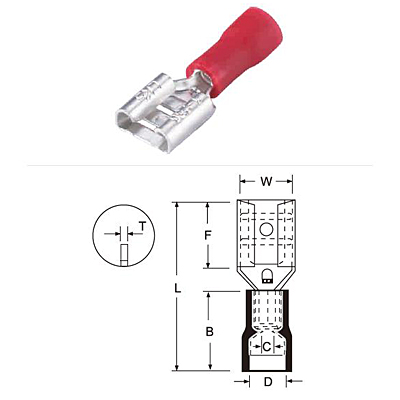

VINYL INSULATED FEMALE DISCONNECTORS

Share |

VINYL INSULATED FEMALE DISCONNECTORS

Material

lnsulation:vinyl
Terminal body:Brass

Plating:Tin

Data Source : 12
WIRE
RANGE		 ITEM NO. NEMA TAB DIMENSION mm(inch) COLOR Q’TY
BOX
mm2
(A.W.G.)		 Thickness × Width
mm              inch		 W F L B D T

0.5-1.5

(22-16)

 FDV1-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 19.0(.748) 10.5(.413) 3.8(.150) 0.3(.012) Red 1000
FDV1-110(8) 0.8×2.8 .032×.110 3.2(.126)
FDV1-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 19.4(.764) .035(.014)
FDV1-187(8) 0.8×4.75 .032×.187 5.0(.197)
FDV1-205(5) 0.5×5.2 .020×.205 5.7(.224) 5.8(.228) 19.3(.760)
FDV1-205(8) 0.8×5.2 .032×.205
FDV1-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 20.8(.819) 0.4(.016)
FDV1-312 0.8×8.0 .032×.312 8.2(.323) 10.0(.394) 24.5(.965)
WIRE
RANGE		 ITEM NO. NEMA TAB DIMENSION mm(inch) COLOR Q’TY
BOX
mm2
(A.W.G.)		 Thickness × Width
mm              inch		 W F L B D d1 T

1.5-2.5

(16-14)

 FDV2-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 19.0(.748) 10.5(.413) 4.7(.185) 2.3（.091） 0.3(.012) Blue 1000
FDV2-110(8) 0.8×2.8 .032×.110 3.2(.126)
FDV2-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 19.4(.764) 0.35(.014)
FDV-187(8) 0.8×4.75 .032×.187 5.0(.197)
FDV2-205(5) 0.5×5.2 .020×.205 5.7(.224) 5.8(.228) 19.3(.760)
FDV2-205(8) 0.8×5.2 .032×.205 5.7(.224) 5.8(.228) 19.3(.760)
FDV2-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 20.8(.819) 0.4(.016)
FDV2-312 0.8×8.0 .032×.312 8.2(.323) 10.0(.394) 24.5(.966)
FDV2-375 1.2×9.4 .047×.375 10.0(.394) 12.0(.472) 26.1(1.028) 0.5(.020)

4-6

(12-10)

 FDV5-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 22.0(.866) 13.0(.512) 6.2(.244) 3.4（.134） 0.35(.014) Yellow 500
FDV5-110(8) 0.8×2.8 .032×.110 3.2(.126) 6.5(.256)
FDV5-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.5(.256) 22.0(.866)
FDV5-187(8) 0.8×4.75 .032×.187 5.0(.197) 6.5(.256)
FDV5-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 23.2(.917)
FDV5-312 0.8×8.0 .032×.312 8.2(.323) 10.0(.394) 27.0(1.063) 0.4(.016)
FDV5-375 1.2×9.4 .047×.375 10.0(.394) 12.0(.472) 28.6(1.126) 0.5(.020)
