VINYL FULLY INSULATED FEMALE DISCONNECTORS

Share |
VINYL FULLY INSULATED FEMALE DISCONNECTORS

Material
lnsulation:vinyl
Terminal body:Brass
Plating:Tin

Data Source : 1
WIRE
RANGE		 ITEM NO. NEMA TAB DIMENSION mm(inch) COLOR Q’TY
BOX
mm2
(A.W.G.)		 Thickness × Width

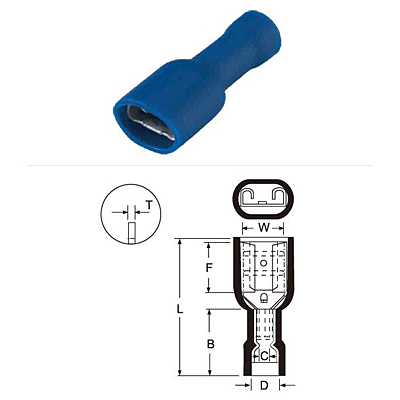

mm              inch		 W F L B D d1 T

0.5-1.5

(22-16)

 FDFV1-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 19.0(.748) 10.5(.413) 3.8(.150) 1.7（.067） 0.3(.012) Red 1000
FDFV1-110(8) 0.8×2.8 .032×.110
FDFV1-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 20.5(.807) 0.35(.014)
FDFV1-187(8) 0.8×4.75 .032×.187
FDFV1-205(5) 0.5×5.2 .020×.205 5.7(.224) 5.8(.228) 20.2(.795)
FDFV1-205(8) 0.8×5.2 .032×.205
FDFV1-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 21.8(.858) 0.4(.016)

1.5-2.5

(16-14)

 FDFV2-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 19.0(.748) 10.5(.413) 4.7(.185)

2.3

2.3（.091）

 0.3(.012) Blue 1000
FDFV2-110(8) 0.8×2.8 .032×.110 3.2(.126)
FDFV2-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 20.2(.795) 0.35(.014)
FDFV2-187(8) 0.8×4.75 .032×.187 5.0(.197)
FDFV2-250(5) 0.5×5.2 .020×.205 5.7(.224) 5.8(.228) 20.2(.795)
FDFV2-250(8) 0.8×5.2 .032×.205
FDFV2-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 22.2(.874) 0.4(.016)

4-6

(12-10)

 FDFV5-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 24.2(.953) 12.5(.492) 6.2(.244) 3.4（.134） 0.4(.016) Yellow 500
FDFV5-375 1.2×9.4 .047×.375 10.0(.394) 12.0(.472) 30.5(1.201) 0.5(.020)
