31-2大
VINYL INSULATED PIGGY BACK MALE DISCONNECTORS

Share |
VINYL INSULATED PIGGY BACK MALE DISCONNECTORS

Material
lnsulation:vinyl
Terminal body:Brass
Plating:Tin

Data Source : 1
WIRE
RANGE		 ITEM NO. NEMA TAB DIMENSION mm(inch) COLOR Q’TY
BOX
mm2
(A.W.G.)		 Thickness × Width

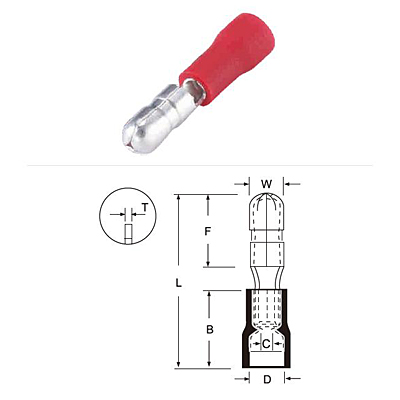

mm              inch		 W W1 F F1 L B D C T

0.5-1.5

(22-16)

 PBDV1-250 0.8×6.35 .032×.250 6.6(.260) 6.35(.250) 8.0(.315) 8.2(.323) 22.5(.886) 10.5(.413) 3.8(.150) 1.7（.067） 0.4(.016) Red 1000

1.5-2.5

(16-14)

 PBDV2-250 0.8×6.35 .032×.250 6.6(.260) 6.35(.250) 8.0(.315) 8.2(.323) 22.5(.886) 10.5(.413) 4.7(.185) 2.3（.091） 0.4(.016) Blue 1000

4-6

(12-10)

 PBDV5-250 0.8×6.35 .032×6.35 6.6(.260) 6.35(.250) 8.0(.315) 8.2(.323) 24.0（.945） 13.0（.512） 6.2(.244) 3.4（.134） 0.4(.016) Yellow 500
