You are here : Products - DIN AND EUROPE TERMINAL - DIN TERMINAL - NON-INSULATED DIN TERMINAL
易捷通大图背景
Data Source : 1
Material
Terminal Body:Copper
Plating:Tin

WIRE
RANGE
ITEM NO. STUD SIZE DIMENSION mm Q’ TY
BOX
mm2
(A.W.G)

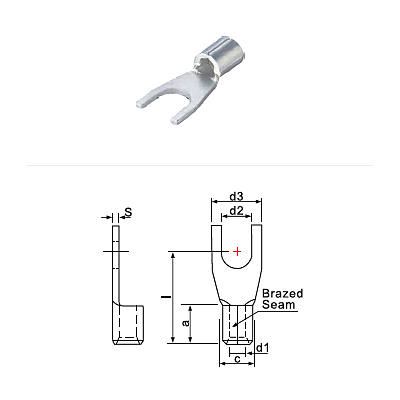

Metric d2 d3 I a c d1 s
0.2~0.5 DSNB2-0.5 2 2.2 5.0 8.0 4.0 2.0 1.0 0.5 1000
DSNB3-0.5 3 3.2
DSNB3.5-0.5 3.5 3.7 6.0 11.0
DSNB4-0.5 4 4.3 6.5
DSNB5-0.5 5 5.3 8.0
0.5~1.5 DSNB3-1 3 3.2 6.0 11.0 5.0 4.0 1.6 0.8 1000
DSNB3.5-1 3.5 3.7
DSNB4-1 4 4.3 6.8 12.0
DSNBL4-1 4 4.3 8.0
DSNB5-1 5 5.3 10.0 13.0
DSNB6-1 6 6.5 11.0 15.0
1.5·2.5 DSNB3-2.5 3 3.2 5.5 13.0 5.0 4.5 2.3 0.8 1000
DSNB3.5-2.5 3.5 3.7 6.0 11.0
DSNB4-2.5 4 4.3 6.8 12.0
DSNBL4-2.5 4 4.3 8.0
DSNB5-2.5 5 5.3 10.0 14.0
DSNB6-2.5 6 6.5 11.0 16.0
2.5~6 DSNB4-6 4 4.3 8.0 14.0 6.0 6.0 3.6 1.0 500
DSNB5-6 5 5.3 10.0 15.0
DSNB6-6 6 6.5 11.0 16.0
DSNB8-6 8 8.4 14.0 19.0
DSNB10-6 10 10.5 18.0 21.0
