VINYL FULLY INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

VINYL FULLY INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS

Material
Insulation:Vinyl
Terminal Body: Brass
Metallic Sleeve:Copper
Plating: Tin

Data Source : 1

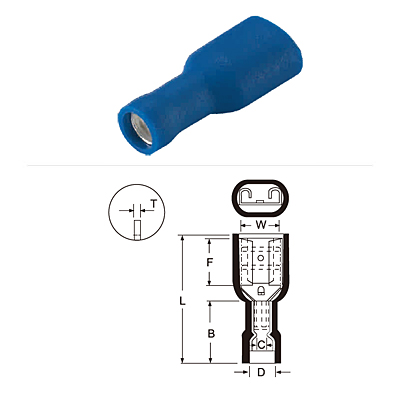

WIRE RANGE	ITEM NO.	NEMA TAB		DIMENSION mm(inch)							COLOR	Q`TY BOX
mm² (A.W.G.)		Thickness×Width mm · inch		W	F	L	B	D	C	T
0.5-1.5 (22-16)	FDFD1-110(5)	0.5×2.8	.020×.110	3.2(.126)	6.5(.256)	19.0(.748)	10.5(.413)	3.8(.150)	1.7(.067)	0.3(.012)	Red	1000
	FDFD1-110(8)	0.8×2.8	.032×.110	3.2(.126)
	FDFD1-187(5)	0.5×4.75	.020×.187	5.0(.197)	6.4(.252)	20.5(.807)				0.35(.014)
	FDFD1-187(8)	0.8×4.75	.032×.187	5.0(.197)
	FDFD1-205(5)	0.5×5.2	.020×.205	5.7(.224)	5.8(.228)	20.2(.795)
	FDFD1-205(8)	0.8×5.2	.032×.205	5.7(.224)
	FDFD1-250	0.8×6.35	.032×.250	6.6(.260)	7.5(.295)	21.8(.858)				0.4(.016)
1.5-2.5 (16-14)	FDFD2-110(5)	0.5×2.8	.020×.110	3.2(.126)	6.5(.256)	19.0(.748)	10.5(.413)	4.7(.185)	2.3(.091)	0.3(.012)	Blue	1000
	FDFD2-110(8)	0.8×2.8	.032×.110	3.2(.126)
	FDFD2-187(5)	0.5×4.75	.020×.187	5.0(.197)	6.4(.252)	20.2(.795)				0.35(.014)
	FDFD2-187(8)	0.8×4.75	.032×.187	5.0(.197)
	FDFD2-205(5)	0.5×5.2	.020×.205	5.7(.224)	5.8(.228)	20.2(.795)
	FDFD2-205(8)	0.8×5.2	.032×.205	5.7(.224)
	FDFD2-250	0.8×6.35	.032×.250	6.6(.260)	7.5(.295)	22.2(.874)				0.4(.016)
4-6 (12-10)	FDFD5-250	0.8×6.35	.032×.250	6.6(.260)	7.5(.295)	24.2(.953)	12.5(.492)	6.2(.244)	3.4 (.134)	0.4(.016)	Yellow	500
	FDFD5-375	1.2×9.4	.047×.375	10.0(.394)	12.0(.472)	30.5(1.201)				0.5(.020)
