JJC PIERCING CONNECTOR(1kV)-CKS

Application
Application to branch connection and succession for 1KV insulated overhead distribution systems;
Application to branch connection for street lighting systems.

Technical Data

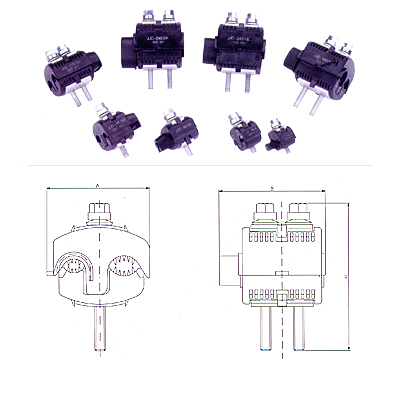

Model	Applicable cable (mm2)		Dimensions (mm2)			Nominal Current (A)	Bolt NO.(piece)	Main application	Note
Model	Mian Line	Branch line	A	B	H	Nominal Current (A)	Bolt NO.(piece)	Main application	Note
JJC-150/150	35~150	35~150	65	53	87	342	2	The connection of maiu circuitries,The branch connection for main circuitries to house circuitries,electric appliances or street light	Low-voltage double-insulation cable,available with the specific ations of high voltage piecing connector
JJC-120/50	25~120	10~50	56	51	78	162	1
JJC-95/50	25~95	6~50	54	51	78	162	1
JJC-50/35	16~50	4~35	45	51	68	132	1
JJC-95/10	25~95	1.5~10	37	25	58	75	1
JJC-50/10	10~50	1.5~10	32	32	49	75	1
JJC-240/240	95~240	95~240	90	85.5	113	476	2
JJC-240/185	95~240	70~185	85.5	83	113	399	2
JJC-240/50	150~240	16~50	76	83	113	162	2
JJC-185/95	70~185	16~95	78.5	80.5	113	257	2
