JJCF 10 DISTRIBUTION PIERCING GROUNDING PROTECTION (10kV)

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

Data Source : 1

Application
Application to grounding protection for 10kv power compensation distribution systems.

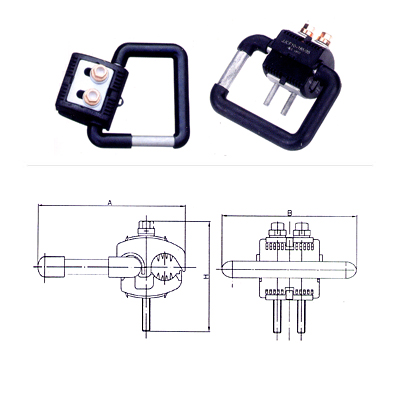

Technical data

Model	Applicable voltage(KV)	Applicable cable (mm2)	Dimensions(mm)			Nominal current(A)	Bolt NO.(piece)	Main application
Model	Applicable voltage(KV)	Applicable cable (mm2)	A	B	H	Nominal current(A)	Bolt NO.(piece)	Main application
JJCF10-185/95	10	95~185	158	140	113	399	2	the grounded safety protection of main circuitry when electric power construction.
JJCF10-95/25	10	25~95	148.5	140	98	257	2
JJCB10-95/16	10	16~95	150	142	98	257	2
