JJCF 20 PIERCING GROUNDING PROTECTION (20kV)

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

Data Source : 1

Application
Application to grounding protection during electric power construction for 20KV or below insulated overhead line.

Technical Data

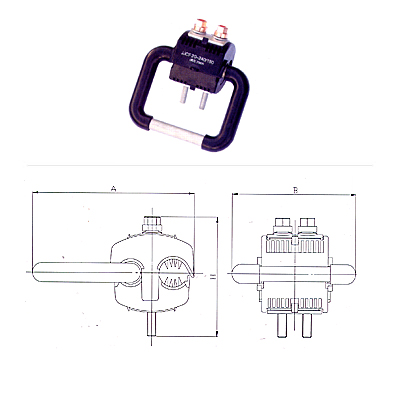

Model	Applicable cable(KV)	Applicable cable(mm2)	Dimensions(mm2)			Nominal Current(A)	Bolt NO.(piece)	Main application
Model	Applicable cable(KV)	Applicable cable(mm2)	A	B	H	Nominal Current(A)	Bolt NO.(piece)	Main application
JJCF20-120/35	20	35~120	166	140	123	299	2	the grounded safety protection of main circuitry when electric power construction.
JJCF20-240/150	20	150~240	170	140	140	476	2
