VINYL INSULATED DOUBLE CRIMP BULLET MALE DISCONNECTORS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

VINYL INSULATED DOUBLE CRIMP BULLET MALE DISCONNECTORS

Material
Insulation:Vinyl
Terminal Body: Brass
Metallic Sleeve:Copper
Plating: Tin

Data Source : 1

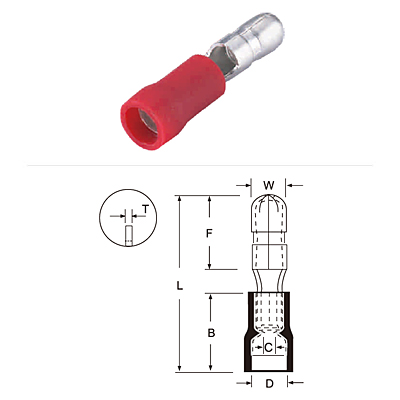

WIRE RANGE	ITEM NO.	DIMENSION mm(inch)							COLOR	Q`TY BOX
mm² (A.W.G.)	ITEM NO.	W	F	L	B	D	C	T	COLOR	Q`TY BOX
0.5-1.5 (22-16)	MPD1-156	4.0(.157)	8.5(.335)	21.5(.846)	10.5(.413)	3.8(.150)	1.7(.067)	0.4(.016)	Red	1000
1.5-2.5 (16-14)	MPD2-156	4.0(.157)	8.5(.335)	21.7(.854)	10.5(.413)	4.7(.185)	2.3(.091)	0.4(.016)	Blue	1000
1.5-2.5 (16-14)	MPD2-195	5.0(.197)	8.5(.335)	21.2(.835)	10.5(.413)	4.7(.185)	2.3(.091)	0.4(.016)	Blue	1000
4-6 (12-10)	MPD5-195	5.0(.197)	8.5(.335)	24.0(.945)	13.0(.512)	6.2(.244)	3.4(.134)	0.4(.016)	Yellow	500
