You are here : Products - DIN AND EUROPE TERMINAL - DIN TERMINAL - NON-INSULATED DIN TERMINAL
易捷通大图背景
Data Source : 1
Material
Terminal Body:Copper
Plating:Tin

WIRE
RANGE
ITEM NO. DIMENSION mm Q’ TY
BOX
mm2
(A.W.G)

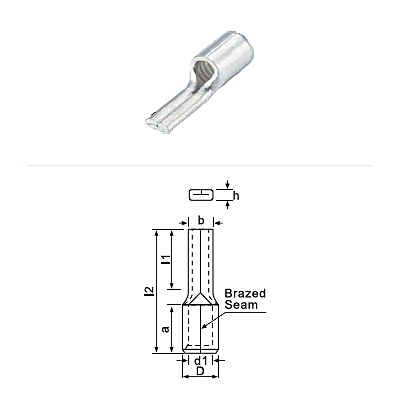

b l1 l2 a D d1 h T
10

DPTNB10-12

4.3 12.0 22.0 8.0 6.9 4.5 2.4 1.1 1000
16 DPTNB16-13 5.5 13.0 26.0 10.0 8.4 5.8 2.6 1.2 500
25 DPTNB25-15 6.8 15.0 33.5 13.5 9.5 7.0 2.6 1.2 400
35 DPTNB35-20 8.0 20.0 40.5 16.0 11.8 8.4 3.2 1.5 200
50 DPTNB50-20 9.5 20.0 45.0 19.0 13.6 9.6 3.8 1.8 100
70 DPTNB70-25 11.0 23.5 55.0 24.0 15.8 11.4 4.2 2.0 50
95 DPTNB95-25 12.5 23.5 55.0 24.0 18.9 13.5 5.2 2.5 50
