DRVB

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

Data Source : 1

Material
Insulation:Vinyl
Terminal Body:Copper
Plating:Tin

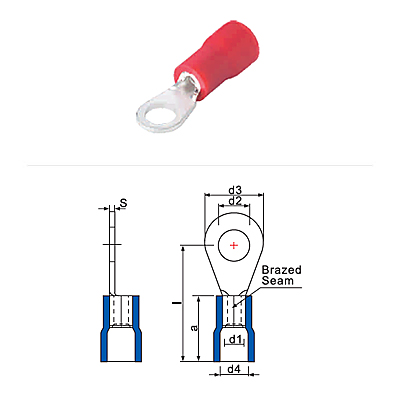

WIRE RANGE	ITEM NO.	STUD SIZE	DIMENSION mm							COLOR	Q’ TY BOX
mm² (A.W.G)	ITEM NO.	Metric	d2	d3	l	d1	d4	a	s	COLOR	Q’ TY BOX
0.5~1.5	DRVB2-1	2	2.2	6.0	16.0	1.6	4.0	10.0	0.8	Red	1000
	DRVB2.5-1	2.5	2.7
	DRVB3-1	3	3.2
	DRVB3.5-1	3.5	3.7
	DRVBS4-1	4	4.3	7.0	16.5
	DRVB4-1	4	4.3	8.0	17.0
	DRVBS5-1	5	5.3	8.0	17.5
	DRVB5-1	5	5.3	10.0	18.0
	DRVB6-1	6	6.5	10.0	18.0
	DRVBL6-1	6	6.5	11.0	20.0
	DRVB8-1	8	8.4	14.0	22.0
	DRVB10-1	10	10.5	14.0	22.0
	DRVBL10-1	10	10.5	18.0	24.0
1.5~2.5	DRVB3-2.5	3	3.2	6.0	16.0	2.3	4.5	10.0	0.8	Blue	1000
	DRVB3.5-2.5	3.5	3.7	6.0	16.0
	DRVBS4-2.5	4	4.3	6.8	16.6
	DRVB4-2.5	4	4.3	8.0	17.0
	DRVBS5-2.5	5	5.3	8.0	18.5
	DRVB5-2.5	5	5.3	10.0	19.0
	DRVB6-2.5	6	6.5	11.0	21.0
	DRVB8-2.5	8	8.4	14.0	22.0
	DRVB10-2.5	10	10.5	15.0	22.0
	DRVBL10-2.5	10	10.5	18.0	23.5
	DRVB12-2.5	12	13.0	18.0	25.0
2.5~6	DRVB4-6	4	4.3	8.0	21.0	3.6	6.3	13.0	1.0	Yellow	500
	DRVB5-6	5	5.3	10.0	22.0
	DRVB6-6	6	6.5	11.0	22.5
	DRVB8-6	8	8.4	14.0	26.0
	DRVB10-6	10	10.5	18.0	28.0
	DRVB12-6	12	13.0	18.0	28.0
