DRNYB
Data Source : 12
Material
Insulation:Vinyl
Terminal Body:Copper
Plating:Tin

WIRE
RANGE
ITEM NO. STUD SIZE DIMENSION mm COLOR Q’ TY
BOX
mm2
(A.W.G)

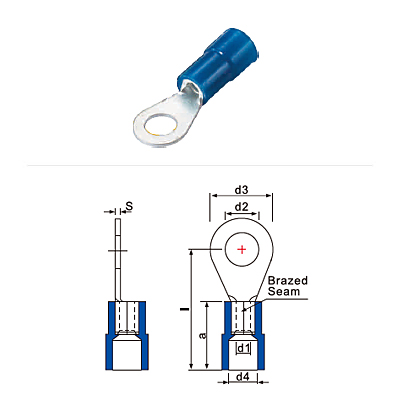

Metric d2 d3 l d1 d4 a s
0.2~0.5 DRNYB2-2.5 2 2.2 5.0 14.0 1.0 2.3 8.0 0.5 Yellow 1000
DRNYB2.5-0.5 2.5 2.7
DRNYB3-0.5 3 3.2
DRNYB3.5-0.5 3.5 3.7 6.0 16.0
DRNYB4-0.5 4 4.3 6.5
DRNYB5-0.5 5 5.3 8.0
0.5~1.5 DRNYB2-1 2 2.2 6.0 17.0 1.6 4.0 11.0 0.8 Red 1000
DRNYB2.5-1 2.5 2.7
DRNYB3-1 3 3.2
DRNYB3.5-1 3.5 3.7
DRNYBS4-1 4 4.3 7.0 17.5
DRNYB4-1 4 4.3 8.0 18.0
DRNYBS5-1 5 5.3 8.0 18.5
DRNYB5-1 5 5.3 10.0 19.0
DRNYB6-1 6 6.5 10.0
DRNYBL6-1 6 6.5 11.0 21.0
DRNYB8-1 8 8.4 14.0 23.0
DRNYB10-1 10 10.5 14.0
DRNYBL10-1 10 10.5 18.0 25.0
1.5~2.5 DRNYB3-2.5 3 3.2 6.0 17.0 2.3 4.5 11.0 0.8 Blue 1000
DRNYB3.5-2.5 3.5 3.7
DRNYBS4-2.5 4 4.3 6.8 17.6
DRNYB4-2.5 4 4.3 8.0 18.0
DRNYBS5-2.5 5 5.3 19.5
DRNYB5-2.5 5 5.3 10.0 20.0
DRNYB6-2.5 6 6.5 11.0 22.0
DRNYB8-2.5 8 8.4 14.0 23.0
DRNYB10-2.5 10 10.5 15.0
DRNYBL10-2.5 10 10.5 18.0 24.5
DRNYB12-2.5 12 13.0 26.0
2.5~6 DRNYB4-6 4 4.3 8.0 21.0 3.6 6.4 13.0 1.0 Yellow 500
Material
Insulation:Vinyl
Terminal Body:Copper
Plating:Tin

WIRE
RANGE
ITEM NO. STUD SIZE DIMENSION mm COLOR Q’ TY
BOX
mm2
(A.W.G)
Metric d2 d3 l d1 d4 a s
2.5~6 DRNYB5-6 5 5.3 10.0 22.0 3.6 6.4 13.0 1.0 Yellow 500
DRNYB6-6 6 6.5 11.0 23.0
DRNYB8-6 8 8.4 14.0 26.0
DRNYB10-6 10 10.5 18.0 28.0
DRNYB12-6 12 13.0
10 DRNYB5-10 5 5.3 10.0 24.5 4.5 8.0 16.5 1.1 Red 500
DRNYB6-10 6 6.5 11.0 25.5
DRNYB8-10 8 8.4 14.0 28.5
DRNYB10-10 10 10.5 18.0 29.5
DRNYBL12-10 12 13.0 22.0 31.5
16 DRNYB5-16 5 5.3 11.0 31.5 5.8 11.0 21.5 1.2 Blue 250
DRNYB6-16 6 6.5
DRNYB8-16 8 8.4 14.0 33.5
DRNYB10-16 10 10.5 18.0 35.5
DRNYB12-16 12 13.0 22.0 37.5
