You are here : Products - DIN AND EUROPE TERMINAL - DIN TERMINAL - PC-INSULATED TERMINAL (NI SERIES)
易捷通大图背景
Data Source : 1
Material
Insulation:PC
Terminal Body:Copper
Plating:Tin

WIRE
RANGE
ITEM NO. STUD SIZE DIMENSION mm COLOR Q’ TY
BOX
mm2
(A.W.G)

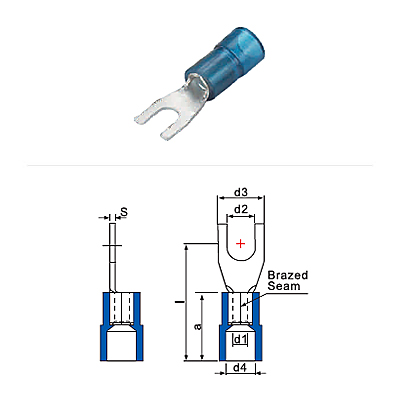

Metric d2 d3 l a c d1 s
0.2~0.5 DSNIB2-0.5 2 2.2 5.0 12.0 1.0 2.3 8.0 0.5 Yellow 1000
DSNIB3-0.5 3 3.2
DSNIB3.5-0.5 3.5 3.7 6.0 15.0
DSNIB4-0.5 4 4.3 6.5
DSNIB5-0.5 5 5.3 8.0
0.5~1.5 DSNIB3-1 3 3.2 6.0 17.0 1.6 4.0 11.0 0.8 Red 1000
DSNIB3.5-1 3.5 3.7
DSNIB4-1 4 4.3 6.8 18.0
DSNIBL4-1 4 4.3 8.0
DSNIB5-1 5 5.3 10.0 19.0
DSNIB6-1 6 6.5 11.0 21.0
1.5~2.5 DSNIB3-2.5 3 3.2 5.5 19.0 2.3 4.5 11.0 0.8 Blue 1000
DSNIB3.5-2.5 3.5 3.7 6.0 17.0
DSNIB4-2.5 4 4.3 6.8 18.0
DSNIBL4-2.5 4 4.3 8.0 18.0
DSNIB5-2.5 5 5.3 10.0 20.0
DSNIB6-2.5 6 6.5 11.0 22.0
2.5~6 DSNIB4-6 4 4.3 8.0 21.0 3.6 6.4 13.0 1.0 Yellow 500
DSNIB5-6 5 5.3 10.0 22.0
DSNIB6-6 6 6.5 11.0 23.0
DSNIB8-6 8 8.4 14.0 26.0
DSNIB10-6 10 10.5 18.0 28.0
