NYLON FULLY INSULATED DOUBLE CRIMP BULLET FEMALE DISCONNECTORS (NYD SERIES)

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON FULLY INSULATED DOUBLE CRIMP BULLET FEMALE DISCONNECTORS (NYD SERIES)

Material
Insulation：Nylon
Terminal Body：Brass
Metarllic Sleeve：Copper
Plating：Tin

Data Source : 1

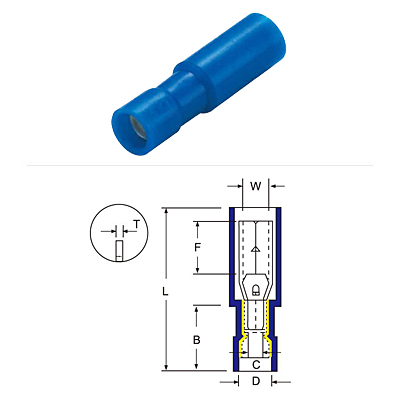

WIRE RANGE	ITEM NO.	DIMENSION mm（inch）							COLOR	Q’TY BOX
mm² (A.W.G)	ITEM NO.	W	F	L	B	D	C	T	COLOR	Q’TY BOX
0.5-1.5 (22-16)	FRFNYD1-156	3.9(.153)	7.0(.276)	25.2(.992)	11.0(.433)	4.0(.157)	1.7(.067)	0.4(.016)	Red	1000
1.5-2.5 (16-14)	FRFNYD2-156	3.9(.153)	7.0(.276)	25.2(.992)	11.0(.433)	5.0(.197)	2.3(.091)	0.4(.016)	Blue	1000
