SNYD
NYLON INSULATED SPADE TERMINALS

Share |

NYLON INSULATED SPADE TERMINALS

Material
Insulation:Nylon
Terminal Body: Copper
Plating: Tin

Data Source : 1
WIRE

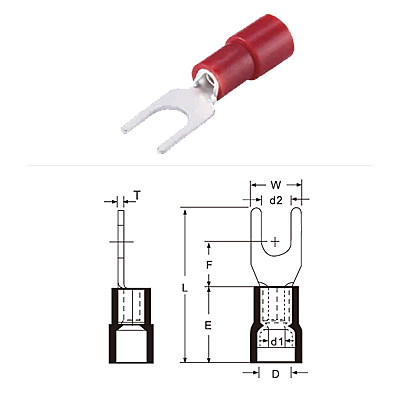

RANGE		 ITEM NO. d2 DIMENSION mm(inch) COLOR Q`TY
BAG
mm2
(A.W.G.)		 mm(inch) USA W F L E D d1 T
0.5-1.5
(22-16)		 SNY1-3.2 3.2(.126) #4 5.7(.224) 6.5(.256) 22.0(.866) 11.0(.433) 4.0(.157) 1.7(.067) 0.75(.030) Red 1000
SNYS1-3.7 3.7(.146) #6
SNYL1-3.7 3.7(.146) #6 6.4(.252)
SNYLL1-3.7 3.7(.146) #6 7.2(.283)
SNYS1-4 4.3(.169) #8 6.4(.252)
SNYM1-4 4.3(.169) #8 7.2(.283)
SNYL1-4 4.3(.169) #8 8.1(.319) 6.5(.256) 22.0(.866)
SNYS1-5 5.3(.209) #10
SNYL1-5 5.3(.209) #10 9.5(.374) 6.5(.256) 22.0(.866)
SNYS1-6 6.4(.252) 1/4"
SNYL1-6 6.4(.252) 1/4" 12.0(.472) 11.0(.433) 28.0(1.102)
1.5-2.5
(16-14)		 SNY2-3.2 3.2(.126) #4 5.7(.224) 6.5(.256) 22.0(.866) 11.0(.433) 4.5(.177) 2.3(.091) 0.8(.031) Blue 1000
SNYS2-3.7 3.7(.146) #6
SNYL2-3.7 3.7(.146) #6 6.0(.236)
SNYLL2-3.7 3.7(.146) #6 7.2(.283)
SNYS2-4 4.3(.169) #8 6.4(.252)
SNYM2-4 4.3(.169) #8 7.2(.283)
SNYL2-4 4.3(.169) #8 7.9(.311) 6.5(.256) 22.0(.866)
SNYS2-5 5.3(.209) #10
SNYL2-5 5.3(.209) #10 9.3(.366)
SNYS2-6 6.4(.252) 1/4"
SNYL2-6 6.4(.252) 1/4" 12.0(.472) 11.0(.433) 28.0(1.102)
4-6
(22-10)		 SNYS5-3.7 3.7(.146) #6 7.2(.283) 7.5(.295) 24.4(.961) 13.0(.512) 6.4(.252) 3.4(.134) 1.0(.039) Yellow 500
SNY5-3.7 3.7(.146) #6 8.3(.327) 7.0(.276) 25.5(1.004)
SNYSS5-4 4.3(.169) #8 7.2(.283) 7.5(.295) 24.4(.961)
SNYS5-4 4.3(.169) #8 8.3(.327) 7.0(.276) 25.5(1.004)
SNYL5-4 4.3(.169) #8 9.0(.283)
SNY5-5 5.3(.209) #10
SNYS5-6 6.4(.252) 1/4"
SNYL5-6 6.4(.252) 1/4" 12.0(.472) 12.0(.472) 31.5(1.240)
SNY5-8 8.4(.315) 5/16" 14.0(.315) 10.5(.413) 30.5(1.201)
