LSNY
NYLON INSULATED LOCKING SPADE TERMINALS

Share |

NYLON INSULATED LOCKING SPADE TERMINALS

Material
Insulation:Nylon
Terminal Body: Copper
Plating: Tin

Data Source : 1
WIRE

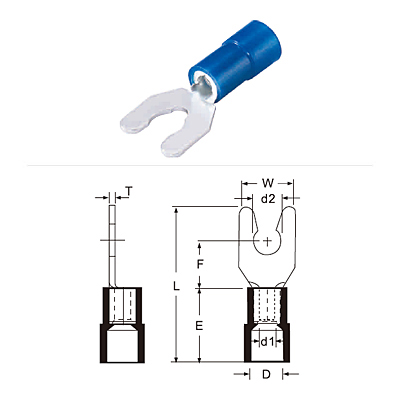

RANGE		 ITEM NO. d2 DIMENSION mm(inch) COLOR Q`TY
BOX
mm2
(A.W.G.)		 mm(inch) USA W F L E D d1 T
0.5-1.5
(22-16)		 LSNY1-3.7 3.7(.146) #6 6.4(.252) 6.5(.256) 22.0(.866) 11.0(.433)

4.0(.134）

 1.7(.067) 0.75(.030) Red 1000
LSNYS1-4 4.3(.169) #8 7.2(.283)
LSNYL1-4 4.3(.169) #8 8.1(.319)
LSNYS1-5 5.3(.209) #10 8.1(.319)
LSNYL1-5 5.3(.209) #10 9.5(.374)
1.5-2.5
(16-14)		 LSNY2-3.7 3.7(.146) #6 6.0(.236) 6.5(.256) 22.0(.866) 11.0(.433) 4.5(.161) 2.3(.091) 0.8(.031) Blue 1000
LSNY2-4 4.3(.169) #8 7.2(.283)
LSNYL2-4 4.3(.169) #8 8.1(.319)
LSNYS2-5 5.3(.209) #10 8.1(.319)
LSNYL2-5 5.3(.209) #10 9.3(.366)
4-6
(12-10)		 LSNY5-3.7 3.7(.146) #6 8.3(.327) 7.0(.276) 25.2(.992) 13.0(.512) 6.4(.252) 3.4(.134) 1.0(.039) Yellow 500
LSNY5-4 4.3(.169) #8 8.3(.327)
LSNY5-5 5.3(.209) #10 9.0(.354)
LSNY5-6 6.4(.252) 1/4" 12.0(.472) 12.0(.472) 31.5(1.240)
