HNY
NYLON INSULATED HOOK TERMINALS

Share |

NYLON INSULATED HOOK TERMINALS

Material
Insulation:Nylon
Terminal Body: Copper
Plating: Tin

Data Source : 1
WIRE

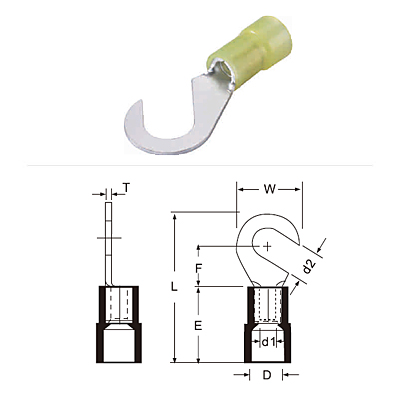

RANGE		 ITEM NO. d2 DIMENSION mm(inch) COLOR Q`TY
BOX
mm2
(A.W.G.)		 mm(inch) USA W F L E D d1 T
0.5-1.5
(22-16)		 HNY1-3.7 3.7(.146) #6 8.0(.315) 7.0(.276) 21.8(.858) 11.0(.433) 4.0(.157) 1.7(.067) 0.75(.030) Red 1000
HNY1-4 4.3(.169) #8
HNY1-5 5.3(.209) #10
HNY1-6 6.4(.252) 1/4" 11.6(.457) 11.0(.433) 27.8(1.094)
1.5-2.5
(16-14)		 HNY2-3.7 3.7(.146) #6 8.5(.335) 7.4(.291) 22.8(.898) 11.0(.433) 4.5(.177) 2.3(.091) 0.8(.031) Blue 1000
HNY2-4 4.3(.169) #8
HNY2-5 5.3(.209) #10 9.5(.374) 7.3(.287)
HNY2-6 6.4(.252) 1/4" 12.0(.472) 11.0(.433) 27.8(1.094)
4-6
(12-10)		 HNY5-3.7 3.7(.146) #6 7.2(.283) 6.1(.240) 22.7(1.894) 13.0(.512) 6.4(.252) 3.4(.134) 1.0(.039) Yellow 500
HNY5-4 4.3(.169) #8 9.5(.374) 9.5(.374) 26.8(1.055)
HNY5-5 5.3(.209) #10
HNY5-6 6.4(.252) 1/4" 12.0(.472) 10.3(.406) 29.5(1.164)
HNY5-8 8.4(.331) 5/16" 15.0(.591) 13.5(.531) 34.0(1.139)
