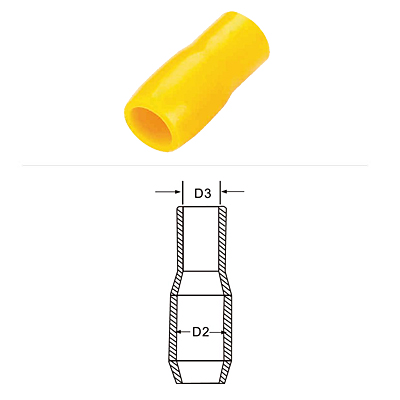

TERMINALS SLEEVES

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

Data Source : 1

Material：Vinyl

ITEM NO.	WIRE SIZE mm²	DIMENSION mm		PACKING BAG	Q’TY BOX	ITEM NO.	WIRE SIZE mm²	DIMENSION mm		PACKING BAG	Q’TY BOX
ITEM NO.	WIRE SIZE mm²	D2	D3	PACKING BAG	Q’TY BOX	ITEM NO.	WIRE SIZE mm²	D2	D3	PACKING BAG	Q’TY BOX
V-1.25	1.25	3.3	3.1	100		V-100	100	22.0	18.0	50
V-2	2	4.5	3.7			V-125	125	24.0	20.0
V-3.5	3.5	5.7	4.1			V-150	150	24.4	22.0
V-5.5	5.5	5.7	5.2			V-200	200	32.0	24.0
V-8	8	7.2	6.2			V-250	250	38.0	26.5
V-14	14	10.0	8.0			V-325	325	38.0	29.0	25
V-22	22	12.0	9.5			V-400	400	44.0	37.0
V-38	38	14.0	11.8			V-500	500	45.0	40.0
V-60	60	16.8	13.5			V-630	630	52.0	45.0
V-80	80	19.0	16.0	50
