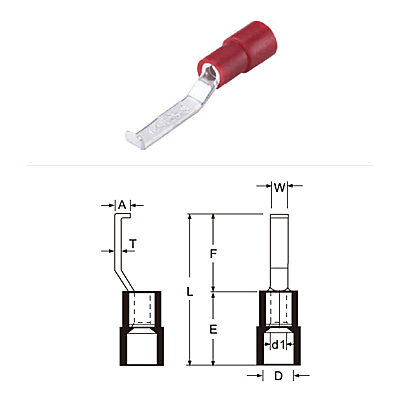

NYLON INSULATED LIPPED BLADE TERMINALS
Material
Insulation:Nylon
Terminal Body: Copper
Plating: Tin
Data Source :
1
WIRE
RANGE
ITEM NO.
DIMENSION mm(inch)
COLOR
Q`TY
BOX
mm
2
(A.W.G.)
W
F
L
E
D
d1
A
T
0.5-1.5
(22-16)
LBNY1-3
3.0(.118)
16.8(.661)
28.2(1.110)
11.0(.433)
4.0(.157)
1.7(.067)
2.1(.083)
0.75(.030)
Red
1000
LBNY1-4.6
4.6(.181)
1.5-2.5
(16-14)
LBNY2-3
3.0(.118)
16.8(.661)
28.2(1.110)
11.0(.433)
4.5(.177)
2.3(.091)
2.1(.083)
0.8(.031)
Blue
1000
LBNY2-4.6
4.6(.181)
4-6
(12-10)
LBNY5-3
3.0(.118)
17.2(.677)
30.2(1.189)
13.0(.512)
6.4(.252)
3.4(.134)
2.75(.108)
1.0(.039)
Yellow
500
LBNY5-4.6
4.6(.181)
