PTNY
NYLON INSULATED PIN TERMINALS

Share |

NYLON INSULATED PIN TERMINALS

Material
Insulation:Nylon
Terminal Body: Copper
Plating: Tin

Data Source : 1
WIRE
RANGE
ITEM NO. DIMENSION mm(inch) COLOR Q`TY
BOX
mm2
(A.W.G.)

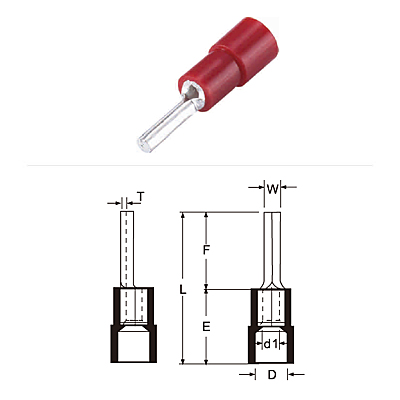

W F L E D d1 T
0.5-1.5
(22-16)
PTNY1-9 1.9(.075) 9.0(.354) 19.8(.780) 11.0(.433) 4.0(.157) 1.7(.067) 0.75(.030) Red 1000
PTNY1-10 10.0(.394) 20.8(.819)
PTNY1-12 12.0(.472) 22.8(.898)
PTNY1-13 13.0(.512) 23.8(.937)
PTNY1-14 14.0(.551) 24.8(.976)
PTNY1-18 18.0(.709) 29.0(1.147)
1.5-2.5
(16-14)
PTNY2-9 1.9(.075) 9.0(.354) 19.8(.780) 11.0(.433) 4.5(.177) 2.3(.091) 0.8(.031) Blue 1000
PTNY2-10 10.0(.394) 20.8(.819)
PTNY2-12 12.0(.472) 22.8(.898)
PTNY2-13 13.0(.512) 23.8(.937)
PTNY2-18 18.0(.709) 29.0(1.147)
4-6
(12-10)
PTNY5-13 2.8(.110) 14.0(.551) 27.0(1.063) 13.0(.512) 6.4(.252) 3.4(.134) 1.0(.039) Yellow 500
