NYLON INSULATED LIPPED BLADE DOUBLE CRIMP TERMINALS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON INSULATED LIPPED BLADE DOUBLE CRIMP TERMINALS

Material
Insulation:Nylon
Terminal Body:Copper
Metallic Sleeve:Copper
Plating:Tin

Data Source : 1

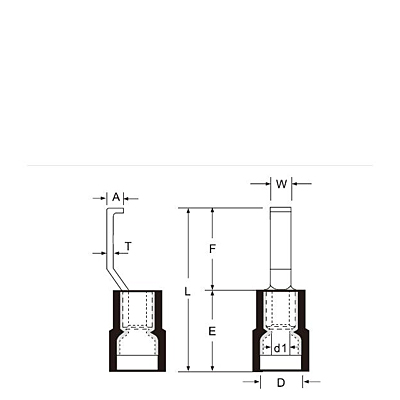

WIRE RANGE	ITEM NO.	DIMENSION mm(inch)								COLOR	Q’TY BOX
mm² (A.W.G)		W	F	L	E	D	d1	A	T
0.5~1.5 (22~16)	LBNYD-1-3	3.0(.118)	16.8(.661)	28.2(1.110)	11.0(.433)	4.5(.177)	1.7(.067)	2.1(.083)	0.75(.030)	Red	1000
	LBNYD1-4.6	4.6(.181)									1000
1.5~2.5 (16~14)	LBNYD2-3	3.0(.118)	16.8(.661)	28.2(1.110)	11.0(.433)	5.2(.205)	2.3(.091)	2.1(.083)	0.8(.031)	Blue	1000
	LBNYD2-4.6	4.6(.181)									1000
4~6 (12~10)	LBNYD5-3	3.0(.118)	17.2(.677)	30.2(1.189)	13.0(.512)	7.0(.276)	3.4(.134)	2.75(.108)	1.0(.039)	Yellow	1000
	LBNYD5-4.6	4.6(.181)									1000
