NYLON INSULATED DOUBLE CRIMP PIN TERMINALS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON INSULATED DOUBLE CRIMP PIN TERMINALS

Material
Insulation:Nylon
Terminal Body:Copper
Metallic Sleeve:Copper
Plating:Tin

Data Source : 1

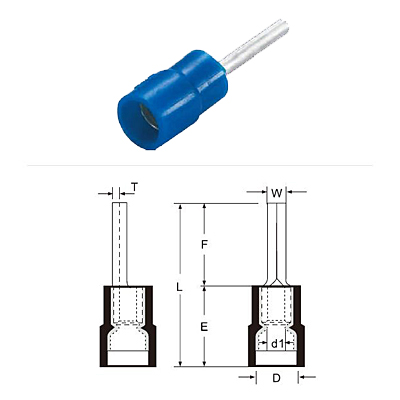

WIRE RANGE	ITEM NO.	DIMENSION mm(inch)							COLOR	Q’TY BOX
mm² (A.W.G)	ITEM NO.	W	F	L	E	D	d1	T	COLOR	Q’TY BOX
0.5~1.5 (22~16)	PTNYD1-9	1.9(.075)	9.0(.354)	19.8(.780)	11.0(.433)	4.5(.177)	1.7(.067)	0.75(.030)	Red	1000
	PTNYD1-10		10.0(.394)	20.8(.819)						1000
	PTNYD1-12		12.0(.472)	22.8(.898)						1000
	PTNYD1-13		13.0(.512)	23.8(.937)						1000
	PTNYD1-14		14.0(.551)	24.8(.976)						1000
	PTNYD1-18		18.0(.709)	29.0(1.147)						1000
1.5~2.5 (16-14)	PTNYD2-9	1.9(.075)	9.0(.354)	19.8(.780)	11.0(.433)	5.2(.205)	2.3(.091)	0.8(.031)	Blue	1000
	PTNYD2-10		10.0(.394)	20.8(.819)						1000
	PTNYD2-12		12.0(.472)	22.8(.898)						1000
	PTNYD2-13		13.0(.512)	23.8(.937)						1000
	PTNYD2-18		18.0(.709)	29.0(1.147)						1000
4~6 (12~10)	PTNYD5-13	2.8(.110)	14.0(.551)	27.0(1.063)	13.0(.512)	7.0(.276)	3.4(.134)	1.0(.039)	Yellow	500
