NON-INSULATED BUTT SPLICE CONNECTORS

Share |
NON-INSULATED BUTT SPLICE CONNECTORS

Material
Terminal Body: Copper
Plating: Tin

Data Source : 1
WIRE

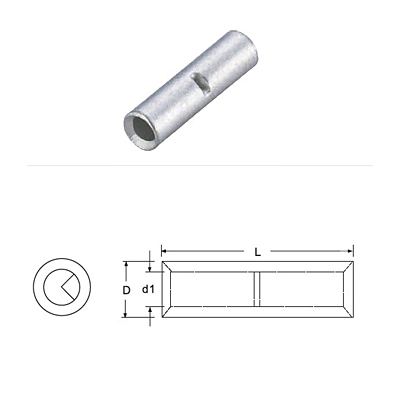

RANGE		 ITEM NO. DIMENSIONmm(inch) Q`TY
BOX
mm2
(A.W.G.)		 L D d1 T

0.2-0.5

（26/22）

 BNT0.5 12.0(.472) 2.1(.083) 1.3(.051) 0.4(.016) 1000

0.5-1.5

(22/16)

 BNT1 15.0(.591) 3.3(.130) 1.7(.067) 0.8(.031) 1000

1.5-2.5

(16/14)

 BNT2 15.0(.591) 3.9(.154) 2.3(.091) 0.8(.031) 1000

2.5-4

(14-12)

 BNT3 15.0(.591) 5.0(.197) 3.0(.118) 1.0(.039) 1000

4-6

(12-10)

 BNT5 15.0(.591) 5.4(.213) 3.4(.134) 1.0(.039) 1000

8

(5)

 BNT8 21.0(.827) 7.0(.276) 4.6(.177) 1.2(.047) 500

14

(6)

 BNT14 26.0(1.024) 8.9(.350) 5.9(.232) 1.5(.059) 500

22

(4)

 BNT22 29.0(1.142) 11.3(.445) 7.8(.307) 1.75(.069) 250

38

(2)

 BNT38 32.0(1.260) 13.2(.520) 9.5(.374) 1.85(.073) 200

60

(1/0)

 BNT60 36.0(1.417) 15.3(.602) 11.4(.449) 1.95(.077) 100

70

(2/0)

 BNT70 37.0(1.457) 17.5(.689) 13.3(.524) 2.1(.083) 100

80

(3/0)

 BNT80 38.0(1.469) 19.5(.768) 14.5(.571) 2.5(.098) 50

100

(4/0)

 BNT100 38.0(1.469) 22.1(.870) 16.4(.646) 2.85(.112) 50

150

(250/300)

 BNT150 54.0(2.126) 26.4(1.039) 19.5(.768) 3.45(.136) 25

180

(300/350)

 BNT180 57.0(2.244) 28.5(1.122) 21.0(.827) 3.75(.148) 10

200

(400/500)

 BNT200 63.0(2.480) 32.4(1.276) 24.0(.945) 4.20(.165) 10

325

(500/600)

 BNT325 72.0(2.835) 37.0(1.457) 28.0(1.102) 4.50(.177) 5
