Stainless

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

Data Source : 1 2 3 4

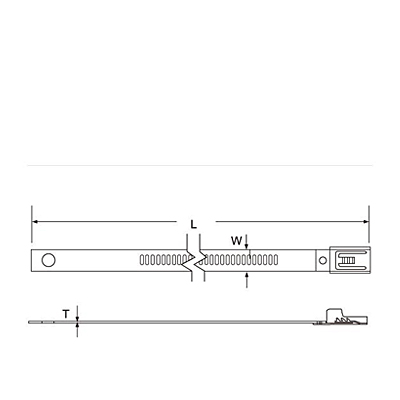

Material：316 Stainless steel
Thickness=.010"(0.3mm)

ITEM NO.	MAX.BUNDLE DIA.		"L"Length Approx.		"W"Width Approx.		Min Loop Tensile		PACKING BAG	Q’TY BOX
ITEM NO.	mm	inch	mm	inch	mm	inch	Ibs.	Kg	PACKING BAG	Q’TY BOX
STL-195S	45	1.7	195	8	7	.28	250	113.4	100
STL-255S	64	2.5	255	10	7	.28
STL-335S	89	3.5	335	13	7	.28
STL-490S	139	5.4	490	19	7	.28
STL-635S	185	7.2	635	25	7	.28
STL-195M	45	1.7	195	8	12	.472	250	113.4	100
STL-255M	64	2.5	255	10	12	.472
STL-335M	59	3.5	335	13	12	.472
STL-490M	139	5.4	490	19	12	.472
STL-635M	185	7.2	635	25	12	.472

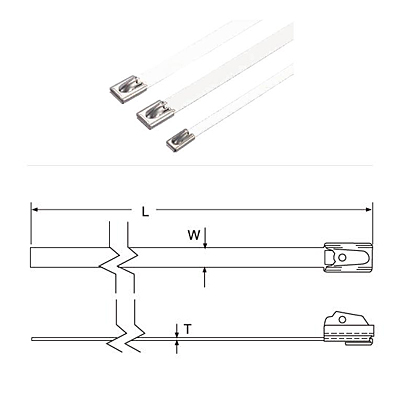

Material：316 Stainless steel
Coating：Nylon 11
Color：Black
Thinkness=.010"(0.3mm)

ITEM NO.	MAX.BUNDLE DIA.		"L"Length Approx.		"W"Width Approx.		Min Loop Tensile		PACKING BAG	Q’TY BOX
ITEM NO.	mm	inch	mm	inch	mm	inch	Ibs.	Kg	PACKING BAG	Q’TY BOX
STLC-195S	45	1.7	195	8	7	.28	250	113.4	100
STLC-255S	64	2.5	255	10	7	.28
STLC-335S	89	3.5	335	13	7	.28
STLC-490S	139	5.4	490	19	7	.28
STLC-635S	185	7.2	635	25	7	.28
STLC-195M	45	1.7	195	8	12	.472	250	113.4	100
STLC-255M	64	2.5	255	10	12	.472
STLC-335M	59	3.5	335	13	12	.472
STLC-490M	139	5.4	490	19	12	.472
STLC-635M	185	7.2	635	25	12	.472

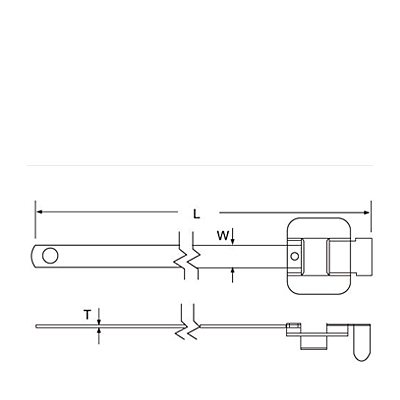

Material：316 Stainless steel
Thickness=.010"(0.5mm)

ITEM NO.	MAX.BUNDLE DIA.		"L"Length Approx.		"W"Width Approx.		Min Loop Tensile		PACKING BAG	Q’TY BOX
ITEM NO.	mm	inch	mm	inch	mm	inch	Ibs.	Kg	PACKING BAG	Q’TY BOX
STB-152S	25	1.0	152	6	4.5	0.177	100	45.4	100
STB-200S	50	2.0	200	8
STB-360S	102	4.0	360	14
STB-520S	152	6.0	520	20
STB-680S	203	8.0	680	27
STB-840S	254	10.0	840	33
STB-1050S	318	12.5	1050	41					50
STB-152M	25	1.0	152	6	8.0	0.315	250	113.4	100
STB-200M	50	2.0	200	8
STB-360M	102	4.0	360	14
STB-520M	152	6.0	520	20
STB-680M	203	8.0	680	27
STB-840M	254	10.0	840	33
STB-1050M	318	12.5	1050	41					50

Material：316 Stainless steel
Coating：Nylon 11
Color：Black
Thickness=.020"(0.5mm)

ITEM NO.	MAX.BUNDLE DIA.		"L"Length Approx.		"W"Width Approx.		Min Loop Tensile		PACKING BAG	Q’TY BOX
ITEM NO.	mm	inch	mm	inch	mm	inch	Ibs.	Kg	PACKING BAG	Q’TY BOX
STC-152S	38	1.5	152	6	.284	6.3	3..	136	100
STC-229S	63	2.5	229	9
STC-305S	86	3.5	305	12
STC-457S	137	5.4	457	18
STC-610S	185	7.3	610	24
