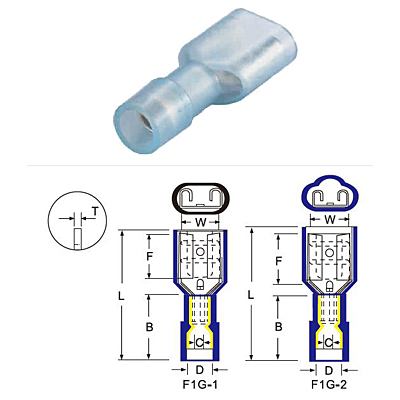

67-2大
NYLON FULLY INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS (NYD SERIES)

Share |

NYLON FULLY INSULATED FEMALE  DISCONNECTORS (NYD SERIES)

Material
Insulation:Nylon
Terminal Body:Brass
Metallic Sleeve:Copper
Plating:Tin

Data Source : 1

WIRE
RANGE
ITEM NO.
 WEMA TAB
DIMENSION mm(inch)
COLOR
Q’TY
BOX
mm2
(A.W.G)
 Thickness×Width
mm 　　inch
W
F
L
B
D
 C
T
 FIG
0.5~1.5
(22~16)		 FDFNYD1-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 19.5(.768) 11.0(.433) 4.0(.157) 1.7(.067) 0.3(.012) 1 Red 1000
FDFNYD1-110(8) 0.8×2.8 .032×.110 3.2(.126)
FDFNYD1-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 20.2(.795) 0.35(.014) 2
FDFNYD1-187(8) 0.8×4.75 .032×.187 5.0(.197)
FDFNYD1-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 21.5(.846) 0.4(.016) 1
1.5~2.5
(16~14)		 FDFNYD2-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 20.2(.795) 11.0(.433) 5.0(.197) 2.3(.091) 0.35(.014) 2 Blue 1000
FDFNYD2-187(8) 0.8×4.75 .032×.187 5.0(.197)
FDFNYD2-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 21.5(.846) 0.4(.016) 1
4~6
(12~10)		 FDFNYD5-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 24.2(.953) 13.0(.512) 6.5(.256) 3.4(.134) 0.4(.016) 2 Yellow 500
