NYLON FULLY INSULATED DOUBLE CRIMP MALE DISCONNECTORS(NYD SERIES)

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON FULLY INSULATED DOUBLE CRIMP MALE DISCONNECTORS(NYD SERIES)

Material
Insulation:Nylon
Terminal Body:Brass
Metallic Sleeve:Copper
Plating:Tin

Data Source : 1

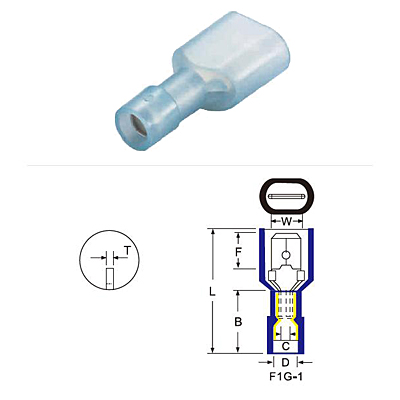

WIRE RANGE	ITEM NO.	WEMA TAB		DIMENSION mm(inch)							COLOR	Q’TY BOX
mm² (A.W.G)		Thickness×Width mm 　　inch		W	F	L	B	D	C	T
0.5~1.5 (22~16)	MDFNYD1-187(5)	0.5×4.75	.020×.187	4.8(.189)	6.5(.256)	22.0(.866)	11.0(.413)	4.0(.157)	1.7(.067)	0.4(.016)	Red	500
	MDFNYD1-187(8)	0.8×4.75	.032×.187
	MDFNYD1-250	0.8×6.35	.032×.250	6.35(.250)	7.7(.303)	24.0(.945)
1.5~2.5 (16~14)	MDFNYD2-187(5)	0.5×4.75	.020×.187	4.8(.189)	6.5(.256)	22.0(.866)	11.0(.413)	5.0(.197)	2.3(.091)	0.4(.016)	Blue
	MDFNYD2-187(8)	0.8×4.75	.032×.187
	MDFNYD2-250	0.8×6.35	.032×.250	6.35(.250)	7.7(.303)	24.0(.945)
4~6 (12~10)	MDFNYD5-250	0.8×6.35	.032×.250	6.35(.250)	7.7(.303)	26.0(1.024)	13.0(.512)	6.5(.256)	3.4(.134)	0.4(.016)	Yellow
