COPPER TUBULAR LUGS

Share |

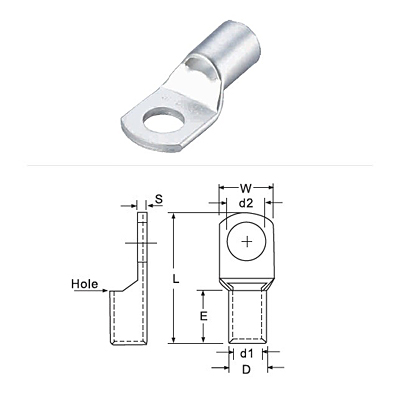

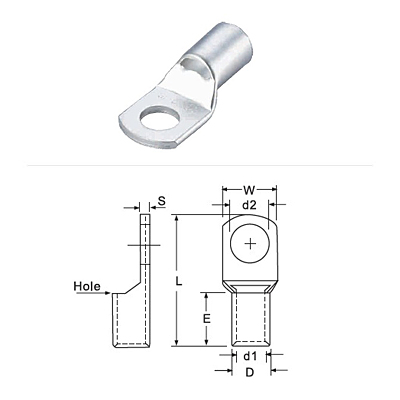

COPPER TUBULAR LUGS

Material
Terminal Body: Copper
Plating: Tin



Data Source : 12



WIRE SPECIFICATION

MAX CURRENT

TYPE BOLT SIZE DIMENSIONS(mm) CRIMPING TOOL

PACKING

(PCS)

d2 W d1 D L E

22-16A.W.G.

0.5-1.5mm2

9A

SC1.5-5 5.3 8.0 1.9 3.35 18 6.5

HX-4 Using 0.3-2.5 caliber of tongs

1000

16-14A.G.W.

1.5-2.5mm2

27A

SC2.5-4 4.3 8.0 2.6 4.0 18.0 7.0

HX-4 Using 0.3-2.5caliber of tongs

1000

1000

SC2.5-5

5.3

20.0

1000

14-12A.W.G.

2.5-4mm2

37A

SC4-5 5.3 10.0 3.2 4.8 20.5 7.5

HX-4

Using4-6

caliber of tongs

1000

1000
SC4-6 6.4 22.0

12-10A.W.G.

4-6mm2

48A

SC6-5 5.3 10.0 3.7 5.3 24.0 8.0

HX-10

Using 4-6

caliber of tongs

500

500
SC6-6 6.4

8A.W.G.

10mm2

90A

SC10-6 6.4 12.6 4.5 6.3 24.0 9.0

HX-10

Using 10 caliber of tongs

500

SC10-8 8.4 25.0

500

6A.W.G.

16mm2

125A

SC16-6 6.4 12.6 5.7 7.5 27.5 11.0

HX-16

Using 16

caliber of tons

250

SC16-8 8.4 29.5

250

4A.W.G

25mm2

160A

SC25-6 6.5 15.0 7.2 9.0 34.0 13.5

HX-150B

Using25

caliber of tongs

200

200

SC25-8

8.4

200

2A.W.G.

35mm2

200A

SC35-8 8.4 15.2 8.5 10.5 37.0 14.5

HX-150B

Using35

caliber of tongs

200

200
SC35-10 10.5 38.0

200

1/0W.G.W.

50mm2

250A

SC50-8 8.4 18.5 9.8 12.5 42.5 17.0

HX-150B

Using 50

caliber of tongs

100

100
SC50-10 10.5 44.0

100

2/0A.W.G.

70mm2

310A

SC70-10 10.5 21.4 11.5 14.5 50.0 19.5

HX-150B

Using 70

caliber of tongs

100

SC70-12

13.0

100

100

3/0A.W.G.

95mm2

380A

SC95-10 10.5 25.5 13.7 17.0 57.0 23.4

HX-150B

Using 95

caliber of tongs

50

SC95-12

13.0

50

4/0A.W.G.

120mm2

440A

SC120-12

13

13.0

28.3

15.0

19.0

63.0

26.0

HX-150B

Using 120

caliber of tongs

25

SC120-16

17.0

26.0

HX-150B

Using 120

caliber of tongs

25

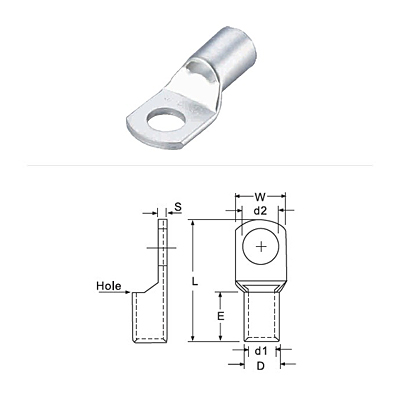

Tubular lugs terminals
Tlk type

Material
Terminal Body: Copper
Plating: Tin

WIRE SPECIFICATION
MAX CURRENT

TYPE

BOLT SIZE

DIMENSION(mm)

CRIMPING TOOL

PACKING

(PCS)

d2

W

d1

D

L

E

250/300MCM A.W.G. 150mm2 510A

SC150-12

13

31.0

16.7

21.0

71.0

29.0

HX-150B Using 150 caliber of tongs

25

SC150-16

17

300/350MCM A.W.G. 185mm2 585A

SC185-16

17

34.2

18.5

23.0

79.0

33.0

HX-245B Using 185 caliber of tongs

10

400/450MCM A.W.G. 240mm2 700A

SC240-16

17

39.0

21.0

26.0

91.0

40.0

HX-245B Using 240 caliber of tongs

10

SC240-20

21

92.0

500MCM A.W.G. 300mm2 800A

SC300-16

17

44.0

24.0

30.0

102.0

44.0

HX-325B Using 300 caliber of tongs

5

500MCM A.W.G. 300mm2 800A

SC300-20

21

44.0

24.0

30.0

102.0

44.0

HX-325B Using 300 caliber of tongs

5

600/750MCM A.W.G. 400mm2 700A

SC400-16

17

51.0

27.0

34.0

102.0

46.0

HX-325B Using 400 caliber of tongs

5

SC400-18

19

113.0

SC400-20

21

50.0

800/1000MCM A.W.G. 500mm2 1100A

SC500-16

17

56.0

30.0

38.0

123.0

50.0



5

SC500-20

16

5

1000/1250MCM A.W.G. 630mm2

SC630-20

21

63.0

35.0

45.0

135.0

56.0



2
