22大
VINYL INSULATED HOOK TERMINALS

Share |

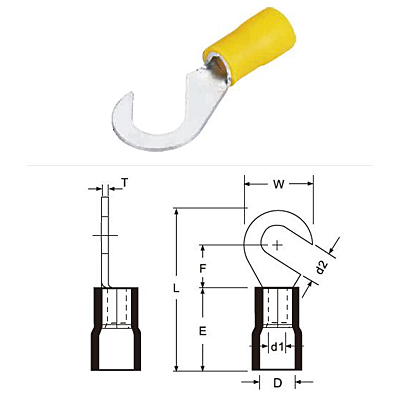

VINYL INSULATED HOOK TERMINALS

Material
lnsulation:vinyl
Terminal body:Copper
Plating:Tin

Data Source : 1
WIRE
RANGE
ITEM NO. d2 DIMENSION mm(inch) COLOR Q’TY
BOX
mm2
(A.W.G.)
mm(inch) USA W F L E D d1 T

0.5-1.5

(22-16)

HV1-3.7 3.7(.146) #6 8.0(.315) 7.0(.276) 20.8(.819) 10.0(.394) 4.0(.157) 1.7(.067) 0.75(.030) Red 1000
HV1-4 4.3(.169) #8 1000
HV1-5 5.3(.209) #10 1000
HV1-6 6.4(.252) 1/4" 11.6(.457) 11.0(.433) 26.8(1.055) 1000

1.5-2.5

(16-14)

HV2-3.7 3.7(.146) #6 8.5(.335) 7.4(.291) 21.8(.858) 10.0(.394) 4.5(.177) 2.3(.091) 0.8(.031) Blue 1000
HV2-4 4.3(.169) #8 1000
HV2-5 5.3(.209) #10 9.5(.374) 7.3(.287) 1000
HV2-6 6.4(.252) 1/4" 12.0(.472) 11.0(.433) 26.8(1.055) 1000

4-6

(12-10)

HV5-3.7 3.7(.146) #6 7.2(.283) 6.1(.240) 22.7(.894) 13.0(.512) 6.4(.252) 3.4(.194) 1.0(.039) Yellow 500
HV5-4 4.3(.169) #8 9.5(.374) 9.5(.374) 26.8(1.055) 500
HV5-5 5.3(.209) #10 500
HV5-6 6.4(.252) 1/4" 12.0(.472) 10.3(.406) 29.5(1.161) 500
HV5-8 8.4(.331) 5/16" 15.0(.591) 13.5(.531) 34.0(1.339) 500
