VINYL INSULATED LIPPED BLADE TERMINALS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

VINYL INSULATED LIPPED BLADE TERMINALS

Material
lnsulation:vinyl
Terminal body:Copper
Plating:Tin

Data Source : 1

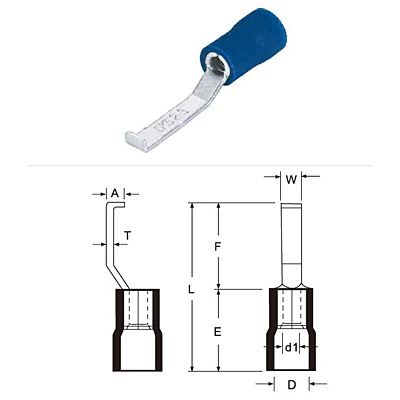

WIRE RANGE	ITEM NO.	DIMENSION mm(inch)								COLOR	Q’TY BOX
mm2 (A.W.G.)		W	F	L	E	D	d1	A	T
0.5-1.5 (22-16)	LBV1-3	3.0(.118)	16.8(.661)	27.2(1.071)	10.0(.394)	4.0(.157)	1.7(.067)	2.1(.083)	0.75(.030)	Red	1000
	LBV1-4.6	4.6(.181)									1000
1.5-2.5 (16-14)	LBV2-3	3.0(.118)	16.8(.661)	27.2(1.071)	10.0(.394)	4.5(.177)	2.3(.091)	2.1(.083)	0.8(.031)	Blue	1000
	LBV2-4.6	4.6(.181)									1000
4-6 (12-10)	LBV5-3	3.0(.118)	17.2(.677)	30.2(1.189)	13.0(.512)	6.4(.252)	3.4(.134)	2.75(.108)	1.0(.039)	Yellow	500
	LBV5-4.6	4.6(.181)									500
