VINYL INSULATED PIN TERMINALS

Share |

VINYL INSULATED PIN TERMINALS

Material
lnsulation:vinyl
Terminal body:Copper
Plating:Tin

Data Source : 1
WIRE

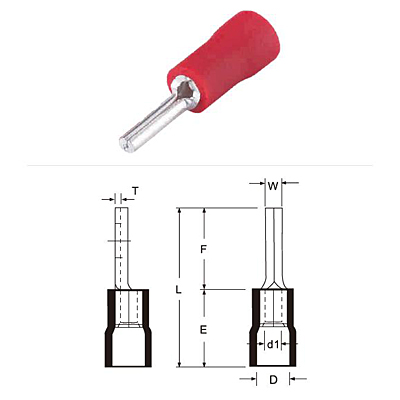

RANGE		 ITEM NO. DIMENSION mm(inch) COLOR Q’TY
BAG
mm2
(A.W.G.)		 W F L E D d1 T

0.5-1.5

(22-16)

 PTV1-9 1.9(.075) 9.0(.354) 18.8(.740) 10.0(.394) 4.0(.157) 1.7(.067) 0.75(.030) Red 1000
PTV1-10 10.0(.394) 19.8(.780) 1000
PTV1-12 12.0(.472) 21.8(.858) 1000
PTV1-13 13.0(.512) 22.8(.898) 1000
PTV1-14 14.0(.551) 23.8(.937) 1000
PTV1-18 18.0(.709) 27.8(1.094) 1000

1.5-2.5

(16-14)

 PTV2-9 1.9(.075) 9.0(.354) 18.8(.740) 10.0(.394) 4.5(.177) 2.3(.097) 0.8(.031) Blue 1000
PTV2-10 10.0(.394) 19.8(.780) 1000
PTV2-12 12.0(.472) 21.8(.858) 1000
PTV2-13 13.0(.512) 22.8(.898) 1000
PTV2-18 18.0(.709) 28.0(1.102) 1000

4-6

(12-10)

 PTV5-13 2.8(.110) 14.0(.551) 27.0(1.063) 13.0(.512） 6.4(.252) 3.4(.134) 1.0(.039) Yellow 500
