NYLON FULLY INSULATED BUTT SPLICE CONNECTORS(FLARED)

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON FULLY INSULATED BUTT SPLICE CONNECTORS(FLARED)

Material
Insulation:Nylon
Terminal Body:Copper
Plating:Tin

Data Source : 1

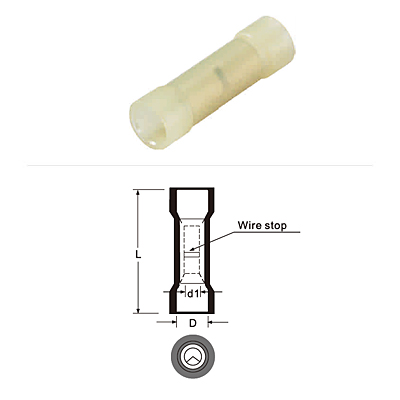

WIRE RANGE	ITEM NO.	DIMENSION mm(inch)			MATERLAL	COLOR	Q’ TY BOX
mm² (A.W.G)	ITEM NO.	L	D	d1	MATERLAL	COLOR	Q’ TY BOX
0.5-1.5 (22-16)	BNYTF 1	25.2 (.922)	4.0 (.157)	1.7 (.067)	COPPER TUBULAR	Red	1000
1.5-2.5 (16-14)	BNYTF 2	25.2 (.922)	4.5 (.177)	2.3 (.091)	COPPER TUBULAR	Blue	1000
4-6 (12-10)	BNYTF 5	28.2 (1.110)	6.3 (.248)	3.4 (.134)	COPPER TUBULAR	Yellow	500
0.5-1.5 (22-16)	BNYF 1	25.2 (.922)	4.0 (.157)	1.7 (.067)	COPPER PLATE	Red	1000
1.5-2.5 (16-14)	BNYF 2	25.2 (.922)	4.5 (.177)	2.3 (.091)	COPPER PLATE	Blue	1000
4-6 (12-10)	BNYF 5	28.2 (1.110)	6.3 (.248)	3.4 (.134)	COPPER PLATE	Yellow	500

Note: BNYT is seamless barrel type
