NYLON FULLY INSULATED FEMALE / MALE DISCONNECTORS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON FULLY INSULATED FEMALE / MALE DISCONNECTORS

Material
Insulation:Nylon
Terminal Body:Brass
Plating:Tin

Data Source : 1

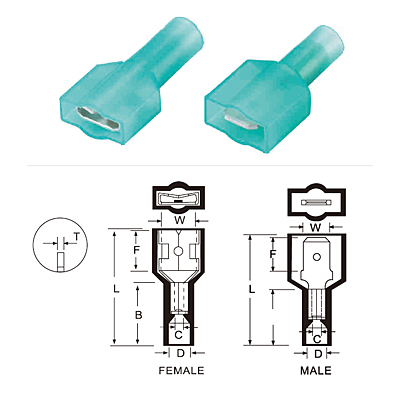

WIRE RANGE	ITEM NO.	NEMA TAB mm(inch)	COUPLERS	DIMENSION mm(inch)						COLOR	Q’ TY BOX
mm² (A.W.G)	ITEM NO.	NEMA TAB mm(inch)	COUPLERS	W	F	L	B	D	T	COLOR	Q’ TY BOX
0.5-1.5 (22-16)	FDFNY1-250	0.8×6.35 (.032×.250)	FEMALE	6.6 (.260)	7.3(.287)	22.0 (.886)	12.0 (.472)	4.0 (.157)	0.45 (.018)	Red	1000
0.5-1.5 (22-16)	MDFNY1-250		MALE	6.35 (.250)	7.7 (.303)	24.5 (.965)	11.0 (.433)	4.0 (.157)	0.8 (.031)	Red	500
0.5-2.5 (16-14)	FDFNY2-250		FEMALE	6.6 (.260)	7.3(.287)	23.0 (.906)	12.0 (.472)	4.5 (.177)	0.45 (.018)	Blue	1000
0.5-2.5 (16-14)	MDFNY2-250		MALE	6.35 (.250)	7.7 (.303)	24.5 (.965)	11.0 (.433)	4.5 (.177)	0.8 (.031)	Blue	500
4-6 (12-10)	FDFNY5-250		FEMALE	6.6 (.260)	7.3 (.287)	23.0 (.906)	12.0 (.472)	5.0 (.197)	0.45 (.018)	Yellow	1000
4-6 (12-10)	MDFNY5-250		MALE	6.35 (.250)	7.7 (.303)	26.0 (1.024)	11.0 (.433)	5.0 (.197)	0.8 (.031)	Yellow	500
