NYLON FULLY INSULATED FLAG FEMALE QUICK DISCONNECTS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON FULLY INSULATED FLAG FEMALE QUICK DISCONNECTS

Material
Insulation:Nylon
Terminal Body:Brass
Metallic Sleeve:Copper
Plating:Tin

Data Source : 1

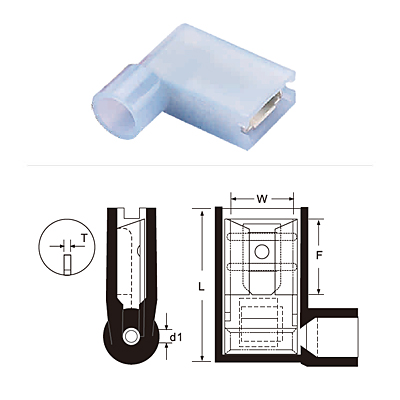

WIRE RANGE	ITEM NO.	NEMA TAB		DIMENSION mm(inch)					COLOR	Q’ TY BOX
mm² (A.W.G)	ITEM NO.	Thickness × Width mm inch		W	F	L	d1	T	COLOR	Q’ TY BOX
0.5-1.5 (22-18)	FLDNY1-250	0.8×6.35	0.32×.250	6.6 (.260)	7.6 (.299)	16.0 (.063)	1.7 (.067)	0.4 (.016)	Red	1000
1.5-2.5 (16-14)	FLDNY2-250	0.8×6.35	0.32×.250	6.6 (.260)	7.6 (.299)	16.0 (.630)	2.3(.091)	0.4 (.016)	Blue	1000
4-6 (12-10)	FLDNY5-250	0.8×6.35	0.32×.250	6.6 (.260)	7.6 (.299)	16.5 (.650)	3.4(.134)	0.4 (.016)	Yellow	500
